Excellent Quality China-Made Solid Waste Incinerator with Adjustable Temperature Control
Attention:
All equipment can be customized to meet your specific requirements. Please feel free to provide your parameters, flow charts, or other demands. We guarantee a quick reply within 12 hours via email or online chat.
Technical Parameters:
| Type | Main Size (mm) | Capacity (kg/batch) | Inside Volume (m³) | Power Consumption (kW/h) | Fuel Consumption (L/h) | Equipment Weight (t) |
|---|---|---|---|---|---|---|
| ZTFS-20-40 | 1200×1300×1800 | 20-40 | 3.0 | 2-4 | 3-8 | 2.2-5.5 |
| ZTFS-20-60 | 1700×1500×2100 | 20-60 | 5.0 | 2-5 | 3-10 | 4.5-7.8 |
| ZTFS-50-120 | 2200×2000×2500 | 50-120 | 10.0 | 3-12 | 4-15 | 5.0-11.5 |
| ZTFS-100-300 | 3000×3500×2900 | 100-300 | 13.0 | 10-30 | 10-40 | 15-25 |
| ZTFS-400-500 | 3000×3700×3200 | 400-500 | 17.0 | 40-50 | 50-60 | 30-45 |
Applications:
This waste incinerator is widely used for the safe disposal of medical waste, household waste, and animal carcasses. Its working principle involves incinerating and carbonizing target materials at high temperatures using fuels such as diesel, natural gas, or coal, achieving thorough sterilization and harmless treatment.
Key Features:
Fuel Options: Utilizes diesel, gas, or other fuels for combustion.
Ignition Method: Fully automatic ignition system.
Operation Mode: Designed for continuous operation.
Exhaust Gas Treatment: Multi-stage process including high-temperature jet vortex combustion, secondary combustion, cyclone dust collection, and chimney emission.
Temperature Control: Adjustable incineration temperature ranging from 600–900°C.
Safety Design: Negative pressure furnace design prevents backfiring and ensures operational safety.
Calorific Value: Designed for an average calorific value of 2500 Kcal/kg.
Footprint: Compact design with dimensions of approximately 2.6m (L) × 1.4m (W) × 2.8m (H), excluding chimney.

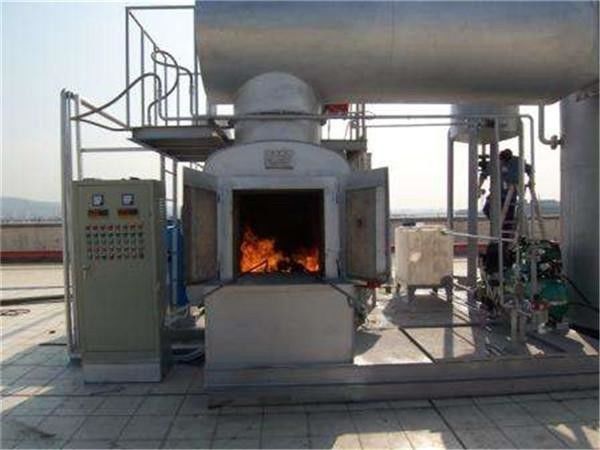

Structure:
The incinerator system includes:
Primary combustion chamber
Secondary combustion chamber
Cyclone dust collector
Chimney and flue system
Piping system
High-pressure blower and auxiliary induced draft fan
Primary and secondary combustion machines
Electronic control cabinet
Temperature indicator and detection devices
Why Choose Our Incinerator?
Customizable Solutions: Tailored to meet specific operational needs.
Efficient Combustion: Advanced technology ensures complete waste disposal with minimal emissions.
Reliable Performance: Robust construction and intelligent control systems for seamless operation.
Environmentally Friendly: Complies with international emission standards.
For more details or to discuss your requirements, contact us today! We are committed to providing expert solutions and prompt support.
Combustion process and brief description:
The waste is manually put into the primary combustion chamber of the furnace body, and the automatic temperature control starts the primary combustion. According to the principle of combustion three T (temperature, time, vortex), it is fully oxidized, pyrolyzed and burned in the furnace body combustion chamber. The flue gas produced by incineration enters the second combustion chamber, and the unburned harmful substances in the flue gas are further destroyed in the second combustion chamber. In order to completely decompose the unburned embers and meet the emission requirements, the second combustion chamber is equipped with a burner to assist combustion, and is equipped with a unique secondary air supply device to ensure that the flue gas is in full contact with oxygen at high temperatures, and at the same time to ensure that the flue gas is in the second combustion chamber. The residence time of the combustion chamber is adjusted according to the oxygen content of the flue gas at the outlet of the second combustion chamber. The temperature in the second combustion chamber is controlled and the larger particles are removed by the dust collector, so that the incineration efficiency and destruction removal rate can reach more than 99%, so that it can achieve the effect of no odor, no odor and smoke, and reach the national emission standard. It enters the chimney and is discharged into the atmosphere, and the ashes produced after combustion are manually taken out, screened, transferred and buried.
Packing and Delivery
1. Waterproof packing with the international export standard by 20ft, 40ft, 40hp container. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.
2. The whole plant machinery size are large as normal, so we will use Waterproof cloth to pack all of them. The motor, gear box or other easily damaged parts, we will put them into box. We have a professional shipping department, they will try their best to save your container quantity.
FAQ:
Q: Are You Trading Company Or Manufacture?
A: We Are Both Manufacture And Trading Company. We Have Over 30 Years' Professional Experience As a Waste Water Treatment Equipment Manufacturer And Engineering Service Enterprise.
Q : What Are Your Main Products?
A:Keywords :Sludge Dewatering Machine Equipment, Screw Type Sludge Dewatering Press Sludge Screw Press, Dewatering Sludge Machine Screw Press ,Sewage Treatment Equipment ,Sludge Treatment Plant,Screw Press Sludge Dewatering ,Dewatering Sludge,Dewatering Machine For Sludge, Dewatering Sludge Machine Screw Press, Rotary Drum Bar Screens, Equipment DAF, DAF Price ,Dissolved Air Flotation System Price, Sludge Shaftless Screw Conveyor,Chemical Dosing Device ,MBBR Price,MBBR Media,Disc Diffuser, Polymer Preparation Chemical Dosing System, and other customized machines.
Q: How Can I Find The Suitable Model?
A: Please Provide Flow Rate, Solids Content And Sludge Type, or directly contact us by the clicking the “contact” icon. We Can Assist You In Model Selection.
